1.introduce
YITserious chemical centrifugal pump is single-stage single suction horizontal pump. It is designed conform tothe standard ISO2858. It is one of the most reliable products of our company.YIT chemical centrifugal pump is suitable for chemical plants. It is used to transport corrosive liquid without solid particles.The temperature of the transported medium is generally 20 ℃ ~ 105℃.The maximum working pressure of the pump is 1.6Mpa, and the inlet pressure is not higher than 0.6MPa.
2.application
Soda, inorganice salts. Metallurgy, acid-making, petrochemical, fiber, plastic, paper-making,chemical fertilizer.Fermentation, environmental protection.
3.parameter
Capacity:6.3-400m3/h Head:5-125m.
Temperature:-40-200oC.
Max operating pressure:1.6MPa.

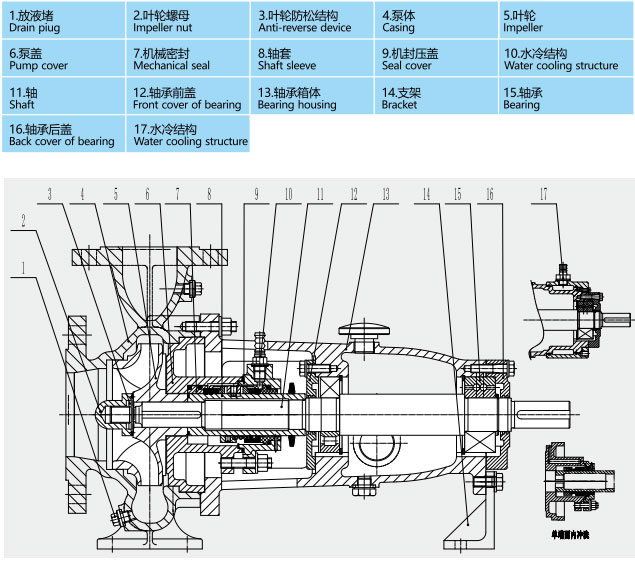

4.Structural feature
The pump structure is back pull type,the rotor part(impeller,shaft,shaft sealing and bearings) can be removed without dismantling the pipes during maintenance.
